HPB-5C
2014-06-25 13:50:00

HPB-5C

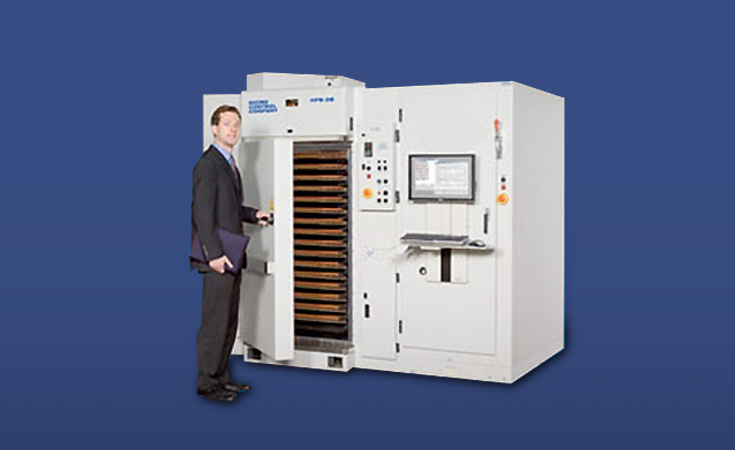

High-Power Burn-In Systems Up to 150 Watts

- Individual temperature control for each device under test up to 150W.
- Individual pattern zone per burn-in board.
- 24 temperature channels.
- Up to 128 digital I/O channels per burn-in board.
- 32M or 64M vector memory, reconfigurable scan vectors up to 8G.
- Programmable temperature control up to 150℃.
- 16 programmable voltage regulators per burn-in board.
- 1080 amps of DUT power available per burn-in board.
- FPGA architecture for per-pin timing, testing, and formatting of pattern data.
- 8 on-the-fly timing sets.
- System capacity up to 384 devices with active thermal control.
