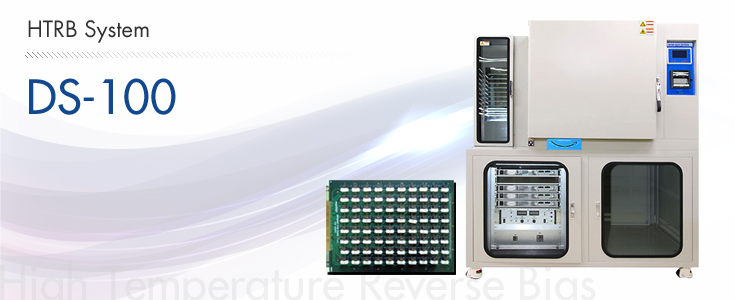

  • HTRB System ? DS-100

    HTRB(High Temperature Reverse Bias) test system

    Oven
    - Temperature Range ? RT ~ 250 ℃
    - Control Accuracy - ±1 ℃

    HTRB Test
    - Large System Capacity of up to 10 Burn-in board(800DUT)
    - 80 DUT / 1 Burn in board.
    - 6 devided test zones for different bias level control.
    - Transistors, Diodes and Capacitors test

    Standard power supply and customer design.
    - 100V(7.5A), 150V(5A), 300V(2.5A)
    - 600V(1.3A), 1000V(1A), -Optional
    - Interior Dimensions : 355(W) x 400(D) x 520(H)
    - Exterior Dimensions : 1620(W) x 930(D), 1940(H)
    - PC Based control

    기술 및 인증
    ISO 9000

    A/S 현황
    1년

  • HTRB System ? DS-2000

    DS-2000 Features

    - Two temperature zones ( two ovens ) up to 175’C
    - Total 24 slots ( 12 slots / oven)
    - Total 4 pattern zones ( 6 slots / pattern zone)
    - DUTs density : 40 ea / board (Total capa : 40 DUTs X 24 slots =960 DUTs)
    - Board size : 420mm (W) x 500mm (D)
    - Board feature : one board for HTRG and GB design . Optionally dedicated design available.
    - All DUTs current monitor and power isolation with switch block for failed DUTs .
    Sampling rate : 1 sec for all DUTs
    DUT Current monitor graph on real time
    - Set stress Voltage and Over/under voltage protection
    - RTD temperature monitering on DUTs (2 ea / board)
    - Powers sources 2KV x 4 and 100V x 4
    - Available socket type : TO220, TO247 and etc
